ATT 40G系列衰减器

---

1、产品型号(Product Model):3、6、10、20、30dB/2W/DC-40GHz/2.92-JK

2、产品名称(Product Name):固定衰减器

3、技术指标(Technical Parameter):

工作频率 (Frequency Range)(GHz)	DC-40
驻波比(VSWR)	≤1. 25
阻抗lmpedance(Q)	50
接口类型 Connectors	2.92-JK(公-母)
额定功率 Power Capacity(W)	2W@25°C
工作温度 0perating Temperature(°C)	-55 ~+125 °C
外壳 Enclosure	不锈钢钝化 Stainless Steel Passivation
内导体 Pin	阳:黄铜镀金 1.27 μm Male: Gold-plated brass 50 micro-inches 阴:铍青铜镀金 1.27 μm Female: Beryllium Bronze Gold 50 micro inches
绝缘子Insulators	PE I
重量 Weight(g)	5

4、衰减精度 Attenuation Accruacy(dB)

料号	规格型号	衰减精度(dB)
60.06.040.0269	3dB/2W/DC-40G/2.92-JK	-0.7/+0.8
60.06.040.0270	6dB/2W/DC-40G/2.92-JK
60.06.040.0271	10dB/2W/DC-40G/2.92-JK
60.06.040.0272	20dB/2W/DC-40G/2.92-JK	-0.8/+1.0
60.06.040.0273	30dB/2W/DC-40G/2.92-JK	0.8/+1.0

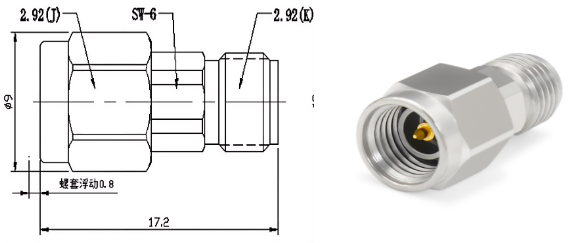

5、外观结构图
